Product Summary
- Electrically conductive heavy duty PVC diamond plate top surface provides superior durability and traction
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x 10⁴ to 1x 10⁶ ohms
Resistance Point to Point (Rtt): 1x 10⁴ to 1x10⁶ ohms - Redstop™ non-slip backing to reduce mat slippage
UniFusion™ bond guaranteed for the life of the mat - Beveled edges on all 4 sides
- Certified by the NFSI (National Floor Safety Institute)
- Grounding cord included, required
WARNING:This product can expose you to chemicals including di-2-ethylhexyl phthalate and/or diisononyl phthalate which is known to the State of California to cause cancer, birth defects or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Specifications Download Specification PDF
| Model No | 927 |
|---|---|
| Brand | NoTrax |
| Available Colors | Black |
Description
Diamond Stat™ Grande™ is a full ONE-INCH is a conductive/anti-static mat designed to absorb static electricity. The mat drains static electricity from the worker keeping sensitive circuitry from being damaged. The durable vinyl diamond-plate design provides non-directional traction and is easy to clean. Diamond Stat™ Grande™ top surface is combined with a rubber foam base utilizing Notrax® exclusive UniFusion™ technology. This virtually eliminates the possibility of de-lamination. Ergonomic fatigue-reducing rubber foam base that provides superior comfort and support eliminates the slipping and sliding of floor mats on smooth surface flooring such as vinyl composite tile, painted or epoxy coated concrete, vinyl sheet flooring, carpet, and ceramic tile.
Specifications
| Model No | 927 |
|---|---|
| Brand | NoTrax |
| Available Colors | Black |
| Overall Thickness | 1 |
| Roll Sizes | 2'x 75'; 3'x 75'; 4'x 75' |
| Custom Lengths | 2', 3' and 4' widths (up to 75' long) |
| Standard sizes | 2'x 3'; 3'x 5'; 3'x 12' |
| Group | Ergonomic, Anti-fatigue & Safety Matting |
| Environment | Dry Areas |
| Recommended Use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations. |
| Special Remarks | For maximum effectiveness, we highly recommend that the end-user properly attaches the grounding cord which is included at no charge. It easily snaps into a grommet which is installed in the mat at our factory. |
| Edges | Beveled edges on all sides |
| Usage Intensity | Heavy duty |
| Custom Description | Available in stock and rolls sizes and in custom lengths. |
| Installation | No installation required |
| Material Specifications | Static dissipative PVC |
| Surface Detail | Industrial Diamond Plate |
| Backing | Closed Cell Rubber |
| Process | Lamination |
| Weight Lbs/sqft | 1.7 |
| Fire Rating US | Pass |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). |
| Anti-Fatigue Rating | Superior |
| Slip Resistance Rating | Superior |
| Wear Resistance Rating | Superior |
Related Products
-
-
Cushion-Stat™ W/ Dyna-Shield®Anti-static PVC durable foam floor matModel No: 825As low as $ 21.60 -
Skystep™ ESDA standalone ESD rubber mat designed for individual workstationsModel No: 457As low as $ 75.00
Accessories
-

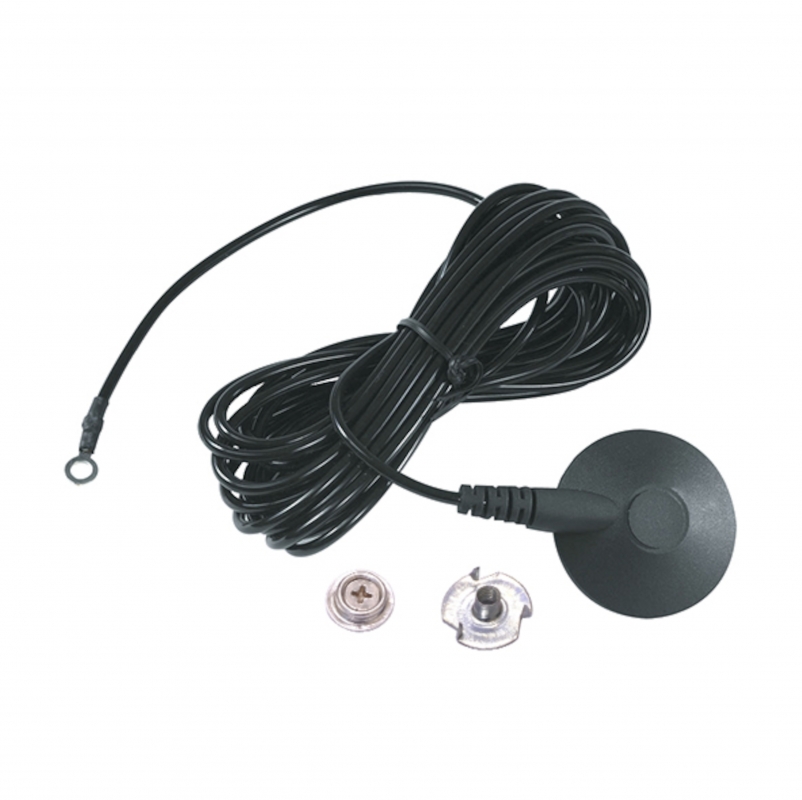

ESD Floor Grounding CordESD grounding cord for NoTrax family of matsModel No: 051As low as $ 32.00
